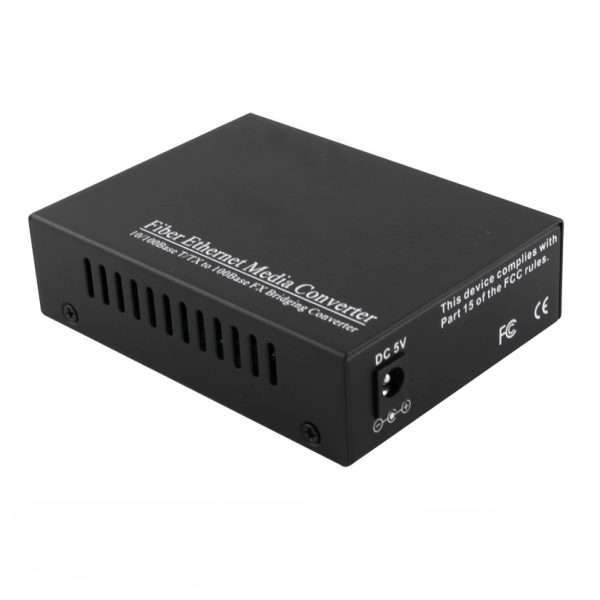

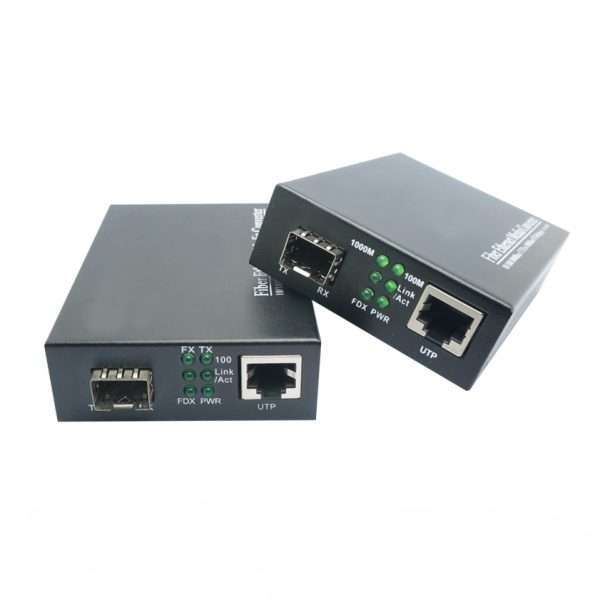

Media Converter RJ45 to SFP 10/100/1000Base-TX to SFP module -supplied without SFP

Media Converter – RJ45 – 10/100/1000Base-TX to SFP module -supplied without SFP

RJ45 10/100/1000 Base-TX to SFP Media Converter

The fibreSales RJ45 10/100/1000 Base-TX to SFP Media Converter provides a simple and reliable way to extend Ethernet networks over fibre optic cable. It converts copper Ethernet signals into fibre transmission, allowing longer network distances and improved signal stability. As a result, it is ideal for commercial, industrial, and security applications.

Flexible Fibre Connectivity

This compact media converter supports 10/100/1000Mbps auto-negotiation on the RJ45 port. In addition, the unit includes an SFP slot that accepts interchangeable SFP modules. This flexible design allows installers to select the correct fibre type, distance, and connector style for each project.

The converter supports both multimode and singlemode fibre modules. Therefore, it can handle short internal building links as well as long-distance external connections. Simply install the required SFP module and connect the fibre cable.

Fast and Simple Installation

The RJ45 port supports Auto MDI/MDIX functionality. Consequently, users do not need crossover cables during installation. Connect the converter directly to switches, routers, NVRs, IP cameras, or other Ethernet devices for quick deployment.

Furthermore, the compact metal housing allows easy installation in communication cabinets, wall boxes, and network racks. The durable metal construction also improves heat dissipation and helps protect the internal components.

Stable Network Performance

Fibre optic transmission provides greater resistance to electrical interference compared to traditional copper cabling. Therefore, this converter performs well in electrically noisy environments such as factories, warehouses, and industrial sites.

In addition, the converter delivers stable high-speed data transmission with low signal loss. When paired with the correct SFP module, the unit can extend network connections over several kilometres while maintaining reliable performance.

Easy Monitoring and Maintenance

Front-mounted LED indicators provide clear power, link, and activity status information. As a result, technicians can quickly identify connection issues and reduce troubleshooting time. This helps improve maintenance efficiency across larger network installations.

Ideal Applications

The FibreSales RJ45 to SFP Media Converter suits many networking applications. For example, it works well in:

• Security and CCTV systems
• Fibre backbone upgrades
• Commercial Ethernet networks
• Industrial communication systems
• Data rooms and server cabinets
• Warehouse and campus networks

Key Features

• 10/100/1000Base-TX and 1000Base-FX
• Supports LC SFP module
• SFP Dictates wavelength and distance
• Auto MDI/MDIX supporte
• 128 K’s data buffer RAM
• Built-in watch-dog timer
• Up to 6 LEDs for status indication
• From 550m to 120km SM transmission on MMF/SMF
• Compliant with CE,FCC,Rohs,REACH
• Warranty: 3 Years
